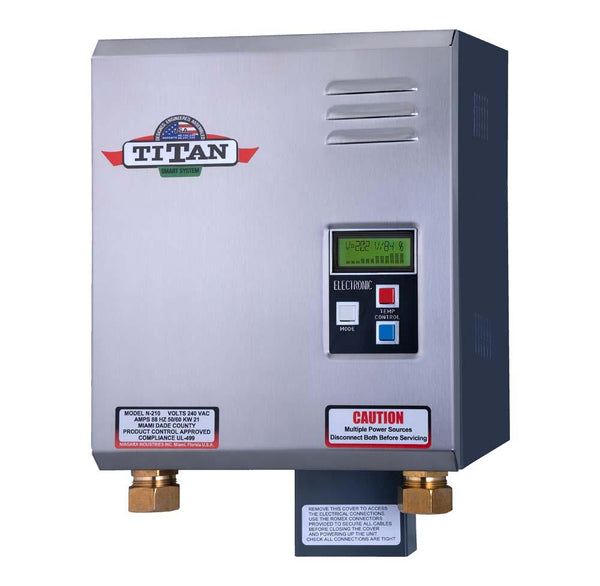

Titan N-210 tankless water heater

The Titan N-210 tankless water heater packs lot of power into a small, compact design. This 21KW water heater is designed to be easily installed in tight spaces and contains three copper heating elements that provide unlimited hot water for up to 5 gpm. The Titan N-210 digital control circuit board allows for fast reaction to water temperature and volume changes to help reduce energy consumption while supplying steady hot water.

Couple the Titan N-210 digital electronic board with top quality heating elements and silicon-controlled rectifiers, and you have a tankless water heater that will last many years.

This water heater’s 12x2 display, which is visible in dark areas, shows the amperage, voltage, and power being used.

Measuring only 10-½” W x 11-½” H x 4" D and weighing 12 lbs, the Titan N-210 provides performance and unlimited run time that is comparable to no other  water heater brand on the market, at a fraction of the size and weight.

For maximum versatility, this water heater features four power steps that let the user adjust the water temperature according to the application being use.

Technical Specifications/ Temperature Rise Chart

NOTE: THE N-210 NEEDS A 200AMP SERVICE
Double installation, two wires coming out of unit and it takes 2x50 amp double pole breakers and 2x6awg wires

Product Measurements

Compliance................................... UL#499
Standards...................................  E212386
Tested ......................................   MET Laboratories
NSF/ANSI-372 Compliant.................   ETL Laboratories
Dimensions................................... 10-1/2" W x 11-1/2" H x 4" D
Weight......................................   12 Pounds
Materials.....................................  Brass and Copper interior / Steel Casing. No plastics Used
Pipe Fitting..................................  3/4" Standard Pipe
Pressure Requirements....................  5 PSI-Min./ 150 PSI-Max
Voltage......................................   220 VAC Std.
Elements...................................... Dual Incoloy Nichrome
Energy Efficiency............................ Up to 99.5%
Activation...................................    0.4 GPM-on / 0.3 GPM-off
Indicators....................................   LCD Display
Warranty...................................    10 years on casing, 1 year on components
Protection....................................  Digital Temperature Control - Manual Resetable Thermostat
